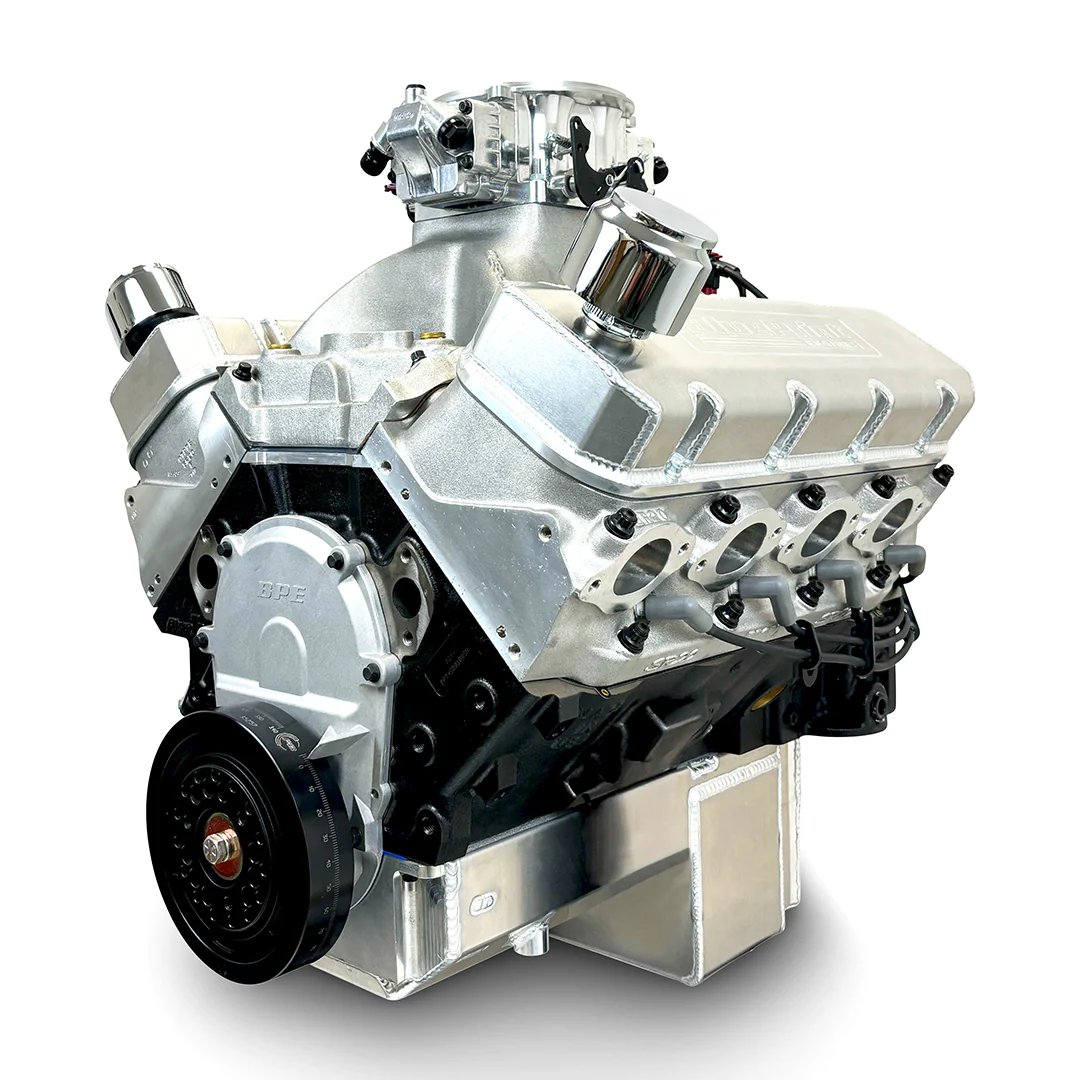

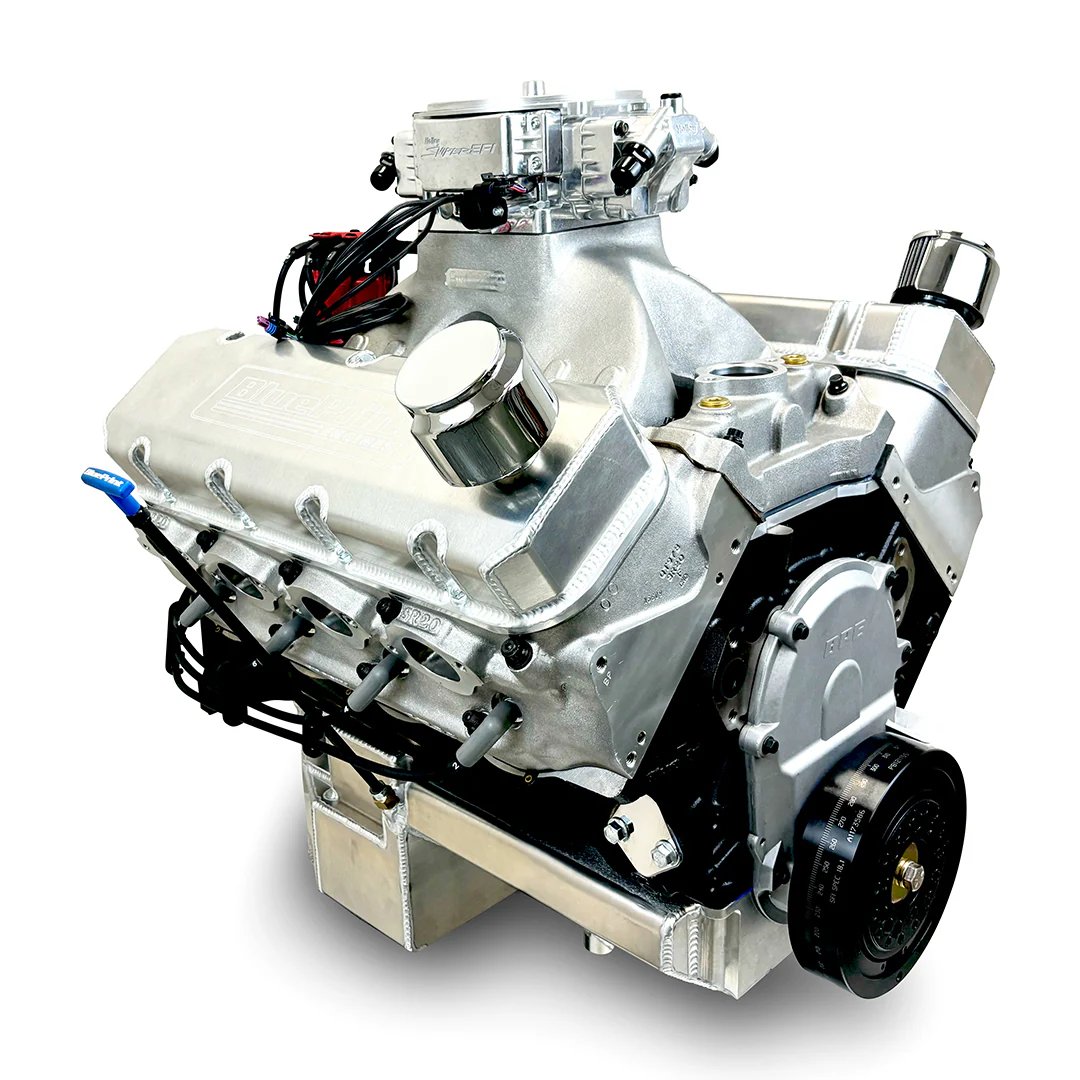

BluePrint Engines 632 c.i BB Proseries Engine PS6321CTF

Horsepower & Torque: 1015 Horsepower / 830 FT. LBS. Torque

Cylinder Heads: Brodix SR20 CNC Ported Heads

Compression Ratio: 10.65:1

Camshaft: Solid Roller Cam - .873 Intake / .861 Exhaust Lift - .293 Intake / .304 Exhaust Duration- @.050-115 Degree Lobe Separation

Pistons: Forged

Crankshaft: Forged Steel Crank - 4.750" Stroke and Forged 6.635" Connecting Rods

Description:

• Horsepower & Torque: 1015 Horsepower / 830 FT. LBS. Torque
• Brodix SR20 CNC Ported Heads
• Compression Ratio: 10.65:1
• Solid Roller Cam
• Pistons: Forged
• Forged Steel Crank

Block:

• BluePrint Engines Cast Iron Block
• Manufactured and Machined in the USA!
• 4-Bolt Main
• 4.600" Bore
• 1-Piece Rear Main Seal

Rotating Assembly:

• Forged Steel Crank
• 4.750" Stroke
• 6.635" Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• Brodix SR20 CNC Ported Heads
• 95cc Chamber
• 440 Intake Runner
• 2.400" Intake / 1.800" Exhaust Valves

Cam Specs:

• Solid Roller Cam
• .873 Intake / .861 Exhaust Lift
• .293 Intake / .304 Exhaust Duration
• @.050-115 Degree Lobe Separation

Ignition Timing:

• Controlled by ECU

Also Includes:

• BluePrint Engines Intake Manifold
• Holley Sniper Stealth 4500
• MSD Pro Billet Distributor
• SFI Harmonic Balancer
• Spark Plugs & Wires
• Timing Cover
• Moroso Aluminum Oil Pan
