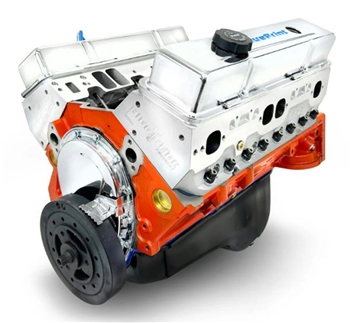

BluePrint Engines 383 c.i SB Engine BP38317CT1

BluePrint Engines 383 c.i SB Engine BP38317CT1

BluePrint Engines 383 c.i SB Engine BP38317CT1

Price: $8,299.00
  • SKUBP38317CT1
- +

⚠ WARNING: Cancer - www.P65Warnings.ca.gov

Other products by BluePrint Engines

Description

BP38317CT1 BluePrint Engines 383 c.i SB Longblock BluePrint Engines 383 c.i. Small Block GM style power adder ready Engine - longblock. incl. 30 month / 50,000 warranty & Dyno Part #: BP38317CT1.

*Stock may be limited please call for availability before ordering*
*Prices include shipping to a business address with a forklift or loading dock*
*Residential addresses or lift gate deliveries please call for a quote*

GM Small Block Compatible 383 c.i. Power Adder Engine - 415 Horsepower - Long Block

SKU: BP38317CT1

Horsepower & Torque: 415 Horsepower / 430 FT. LBS. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 8.9:1

Camshaft: Hydraulic Roller Cam - .536 Intake / .555 Exhaust Lift and 224 Intake / 236 Exhaust Duration @ .050 - 113° LSA

Pistons: Forged

Crankshaft: Steel Crank - 3.750" Stroke and 5.700" Rods




Description:

  • Horsepower & Torque: 415 Horsepower / 430 FT. LBS. Torque
  • Compression Ratio: 8.9:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Forged Crank
  • Forged Pistons

Block:

  • BluePrint Engines High Strength Cast Iron Block
  • Manufactured and Machined in the USA!
  • 4-Bolt Main
  • 4.000"
  • 1-Piece Rear Main Seal
  • Mech Fuel Pump Provision: Yes
  • Passenger Side Dipstick
  • Drilled and Tapped for Clutch Linkage

Rotating Assembly:

  • New BluePrint Forged Crankshaft
  • 3.750" Stroke
  • Forged I-beam 5.700" Connecting Rods
  • Forged Pistons
  • Externally Balanced Front and Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - H8002K
  • 64cc Chamber
  • 2.02" Intake / 1.60" Exhaust Valves
  • 195cc Intake / 75cc Exhaust Runners

Cam Specs:

  • Roller Cam
  • .536 Intake / .555 Exhaust Lift
  • 224 Intake / 236 Exhaust Duration
  • @ .050-113 Degree Lobe Separation

Ignition Timing:

  • Initial Timing 10-16 ° and Total Timing 32-34 °

Also Includes:

  • Oil Pan
  • Valve Covers
  • Timing Cover
  • Power Adder Engine
  • Built with a Dual Keyway Crank
  • Harmonic Balancer

Recommended Break in Oil: BPP710 (Click Here)

Recommended Service Oil: BPP10W30 (Click Here)

Recommended Oil Filter: BPP51061 (Click Here)

Notes:

  • This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
  • Not for EGR.
  • Power Adder Engine.
  • The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
