Horsepower & Torque: 436 Horsepower / 443 FT. LBS. Torque

Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads

Compression Ratio: 10:1

Camshaft: Hydraulic Roller Cam - .544 Intake / .555 Exhaust and 230 Intake / 236 Exhaust Duration @ .050 – 110 LSA

Pistons: Hypereutectic

Crankshaft: Cast Crank - 3.750" Stroke and OEM Type 5.700" Rods

Description:

• Horsepower & Torque: 436 Horsepower / 443 ft. lbs. Torque
• Compression Ratio: 10.0:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Crank
• Hypereutectic Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• 4-Bolt Main
• 4.000" Bore
• 1-Piece Rear Main Seal
• Mech Fuel Pump Provision: No
• Passenger Side Dipstick
• Drilled and Tapped for Clutch Linkage

Rotating Assembly:

• Cast Crankshaft
• 3.750" Stroke
• OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
• Hypereutectic Pistons
• Externally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - H8002K
• 64cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 195cc Intake / 75cc Exhaust Runners

Cam Specs:

• Cam Type: Roller
• .544 Intake / .555 Exhaust Lift
• 230 Intake / 236 Exhaust Duration
• @ .050, 110 Degree Lobe Separation

Also Includes:

• Intake Manifold Dual Plane, Satin Aluminum
• Holley Sniper 2 EFI System
• Valve Covers
• Oil Pan
• Timing Cover
• EFI Fuel Pump Kit
• Spark Plugs and Wires
• Thermostat and Thermostat Housing
• Oil Filter
• Plug Wire Separators
• Polished Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump

Assembled with Complete TKX Transmission Package:

• Mcleod Super Street Pro Single Disk Clutch
• Hydraulic Throw Out Bearing
• Bell Housing
• Billet Flywheel
• Starter
• First Gear Ratio: 2.87:1
• Second Gear Ratio: 1.89:1
• Third Gear Ratio: 1.28:1
• Fourth Gear Ratio: 1.00:1
• Fifth Gear Ratio: 0.68:1

Recommended Break in Oil: BPP710

Recommended Service Oil: BPP10W30

Recommended Oil Filter: BPP51061

Notes:

• This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.

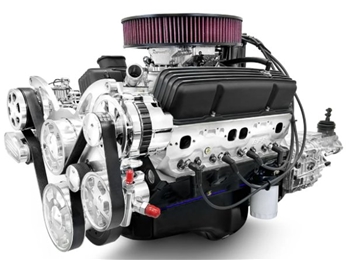

• Package Ships assembled as pictured.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
