Description

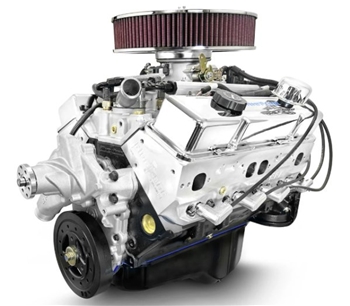

BP4002MPFID GM Small Block Compatible 400 c.i. Engine - 500 Horsepower - Deluxe Dressed - Multi-Port Fuel Injected
*Stock may be limited please call for availability before ordering*
*Prices include shipping to a business address with a forklift or loading dock*
*Residential addresses or lift gate deliveries please call for a quote*
*Stock may be limited please call for availability before ordering*
*Prices include shipping to a business address with a forklift or loading dock*
*Residential addresses or lift gate deliveries please call for a quote*
GM Small Block Compatible 400 c.i. Engine - 500 Horsepower - Deluxe Dressed - Multi-Port Fuel Injected
SKU: BP4002MPFID
Horsepower & Torque: 500 Horsepower / 500 FT. LBS. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 10.3:1
Camshaft: Hydraulic Roller Cam - .553 Intake / .576 Exhaust Lift and 236 Intake / 242 Exhaust Duration @.050-106° LSA
Pistons: Forged
Crankshaft: Forged - 3.750" Stroke and Forged 5.700" Rods
OVERVIEW:
The BluePrint 400 Small Block Chevy compatible performance crate engines are dyno tested at our factory with guaranteed power levels of 500 horsepower and 500 ft. lbs. of torque. The BluePrint designed, multi-port fuel injection system, complete with ECU and full Wiring Harness, has had extensive calibration and development work in creating this specifically tuned and optimized engine that goes well beyond the performance of self-learn EFI systems on the market today. This BluePrint ECU is designed for hassle-free start up and operation. The ECU controls ignition timing and fuel and installs with 3 simple wired connections (Main Battery, Switched 12V Ignition Wire and Fuel Pump).
DESCRIPTION:
- Engine manufactured and machined in the USA!
- Horsepower & Torque: 500 Horsepower / 500 FT. LBS. Torque
- Cylinder Heads: BluePrint Performance Aluminum Heads (Part# H8002K)
- Compression Ratio: 10.3:1
BLOCK:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- 4-Bolt Main
- 4.125" Bore
- 1-Piece Rear Main Seal
- Drilled and Tapped for Clutch Linkage
ROTATING ASSEMBLY:
- New BluePrint Forged Crankshaft
- 3.750" Stroke
- 5.700" Connecting Rods
- Forged Pistons
- Internally Balanced Front
CYLINDER HEADS:
- BluePrint Performance Aluminum Heads - HP8103
- 64cc Chamber
- 2.020" Intake Valves / 1.600" Exhaust Valves
CAM SPECS:
- Cam Type: Hydraulic Roller
- .553 Intake / .576 Exhaust Lift
- 236 Intake / 242 Exhaust Duration
- @.050-106 Degree Lobe Separation
IGNITION TIMING:
- Computer Controlled by BluePrint ECU
ALSO Notes: INCLUDES:
- BluePrint Multi-Port Fuel Injection - Self-Learning Electronic Control Unit (ECU)
- Single Plane Machined Aluminum Intake Manifold
- Polished Chrome "BluePrint" Engraved Valve Covers
- Polished Chrome BluePrint Air Cleaner
- Satin Aluminum Water Pump
- Spark Plugs and Wires
- Harmonic Balancer
- Timing Cover
- Distributor
- Oil Pan
