Description

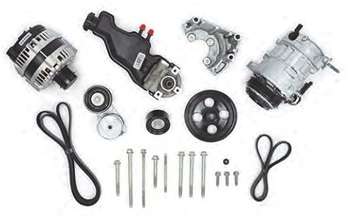

19433745 L8T 6.6 L Accessory Drive System with A/C
Based on production accessory drive system used on Silverado HD models.
Includes variable-displacement air conditioning compressor, alternator, hydraulic power steering pump, brackets, pulleys, tensioners, belts and instruction sheet.
Note: I have a components parts list in excel 19433745CopmponentsParts
Link to Instalattion Instructions
Note: Due to unknown vehicle applications and possible clearance issues, this Accessory Drive Kit is not returnable All sales are final.
Based on production accessory drive system used on Silverado HD models.
Includes variable-displacement air conditioning compressor, alternator, hydraulic power steering pump, brackets, pulleys, tensioners, belts and instruction sheet.
Note: I have a components parts list in excel 19433745CopmponentsParts
Link to Instalattion Instructions
Note: Due to unknown vehicle applications and possible clearance issues, this Accessory Drive Kit is not returnable All sales are final.
More Details
| Item | Number | Qty | Des | |
| 1# | 11570516 | 1 | Bolt | |
| 2# | 85750160 | 1 | Compressor | |
| 3# | 11561936 | 1 | Stud | |
| 4# | 11546377 | 1 | Nut | M8x125 Flange Nut |
| 5# | 12658178 | 1 | Belt AC | |
| 6 | 12654286 | 1 | Bracket PS | |
| 7 | 11518921 | 3 | Bolt | M10x1.5x125mm |
| 8 | 86563313 | 1 | Pump PS | |
| 9 | 12682902 | 1 | Pulley PS | |
| 10 | 11588725 | 3 | Bolt | |
| 11 | 11588751 | 1 | Bolt | |
| 12 | 11611384 | 1 | Bolt | |
| 13 | 13563314 | 1 | Generator | |
| 14 | 11588749 | 1 | Bolt | |
| 15 | 12695659 | 1 | Pulley Idler | |
| 16 | 12654271 | 1 | Tensioner | |
| 17 | 12732503 | 1 | Belt Drive Sys |
