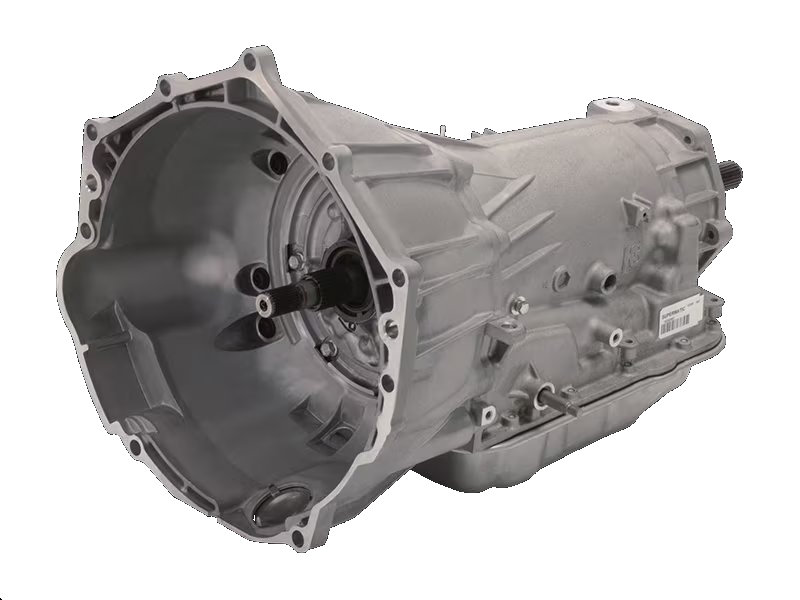

Supermatic 4L70-E Four-Speed Automatic Transmission 19368614

19368614 Supermatic 4L70-E Four-Speed Automatic Transmission, (remanufactured) Replaces 19329645

TRANSMISSION PKG,AUTO SUPERMATIC 4L70 W/GEN5 BELL

Similar in design to the 4L65E, this 4L70E electronically controlled four speed overdrive transmission is suitable for "LT" series V8 engines producing up to 495 Ft. Lbs of torque. Does Not include torque converter.

Features:

• Increased horsepower and torque capacity
• Heavy duty upgrades including 5 pinion gearsets
• Heat treated stator shaft splines
• Induction hardened turbine shaft
• Seven-plate clutch packs
• Shot peened output shaft
• Revised valve body calibration
• Gear ratios: 1st-3.06, 2nd-1.62, 3rd-1.00, 4th .070

Does Not include torque converter.

NOTE: Use with electronic controller PN 19332775 for carbureted and Ram Jet applications.
Use with electronic controller PN 19302405 with LS and LT Fuel-Injected applications.
