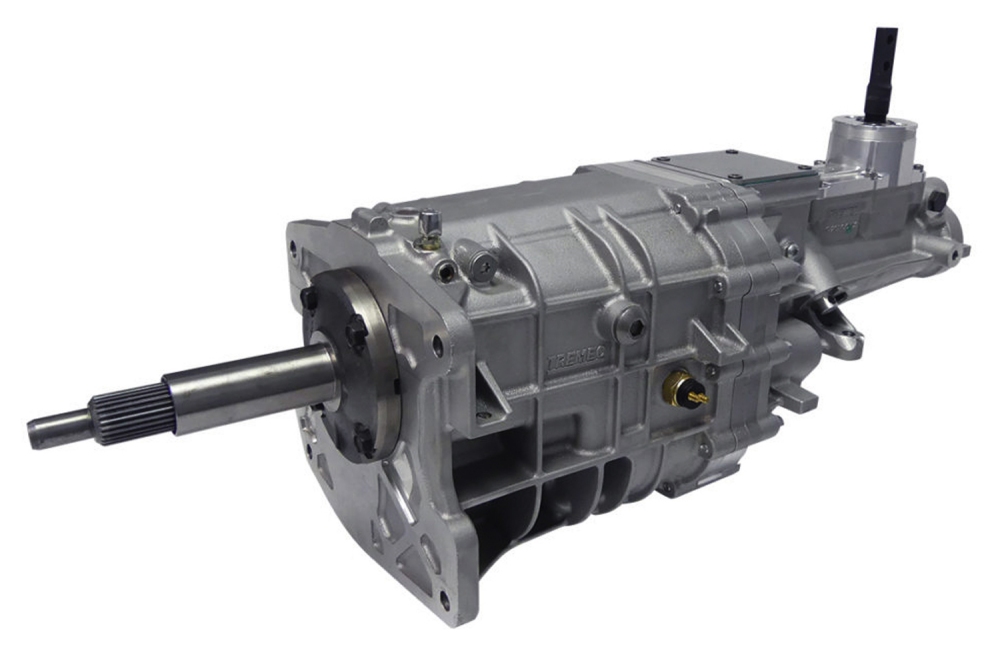

TCET17722 Tremec TKX 5-Speed Transmission GM 26-Spline

Description

TCET17722 Tremec TKX 5-Speed Transmission GM 26-Spline

Tremec is one of the most recognized names in automotive transmissions and transmission components. As a development partner and supplier to companies ranging from GM to Ferrari to Peterbilt, they produce transmissions and related parts for everything from conventional street cruisers to high-performance sports and race cars, to heavy-duty commercial trucks.

The TKO transmissions use 4615 alloy steel gears, larger diameter output shafts, and new, one-piece countershafts to withstand 500-600 lb.-ft. of torque. Available with GM or Ford rear crossmember pattern and 3.27/.68, 2.87/.82 and 2.87/.64 first/fifth gear ratios.

Transmissions include neutral safety switches, back-up light sensors, mechanical and electronic speedometer pick-ups, and billet short throw shifters.

Tremec recommends GM Syncromesh

Model GM TKO-600
Torque Capacity 600 lb-ft

Product Info

Alternate Description

TKX 5-SPEED TRANSMISSION GM 26-SPLINE

Part Number

TRETCET17722

Vendor Part Number

TCET17722

Package Weight

65.00 lbs

29.48 kg

Package Length

34 in

86.36 cm

Package Width

18 in

45.72 cm

Package Height

14 in

35.56 cm

Attributes
Product Line	TKX
Number of Forward Gears	5
1st Gear Ratio	2.87 to 1
2nd Gear Ratio	1.89 to 1
3rd Gear Ratio	1.28 to 1
4th Gear Ratio	1.00 to 1
5th Gear Ratio	0.81 to 1
Reverse Gear Ratio	2.56 to 1
Maximum Torque ft/lb	600 ft/lb
Input Shaft Diameter	1.125 in
Input Shaft Spline	26
Output Shaft Spline	31
Shifter Included	Yes
Case Material	Aluminum
Color	Natural
Finish	Natural
Quantity	Each
