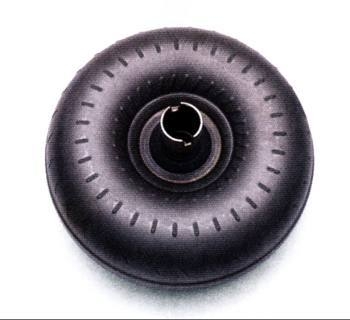

19299803 Supermatic Torque Converter 4L60/65/70E
CONVERTER PKG,TORQ 4L70 - Reman
Late LS V-8 transmission mate to LS V-8 engine, Single bolt pattern 11.062"
The SuperMatic™ Torque Converters from Chevrolet Performance are designed to provide long life when matched with a SuperMatic™ Transmission.
Each converter incorporates the following features:
• Steel billet front cover
• Custom stator
• Fully furnace-brazed pump and turbine
• Designed for Chevrolet Performance crate engines and automatic transmissions
• “Heavy-duty” lock-up clutch • All internal components static balanced
• Fully vector balanced as an assembly
• No external adapters needed to fit Chevrolet Performance crate engines
- Use a 14" 168-Tooth LS Style Flexplate with a 11.062" (281mm) Convertor Bolt Pattern, GM Part Number 12654640
- Will NOT Work with a 153-Tooth Flexplate!
NOTE: Chevrolet Performance torque converters consist of the converter and associated bolts. The part number on the box represents a kit, NOT the actual part number of the converter. Supermatic Torque Converter Kit 19299803 has a converter part number of 19299811.
